Expand your
treatment
offering with
the OP 3D EX

For a limited time:

Save up over $30,000 with flexible field of view options, quick scan times, and high-resolution images.

Grow your diagnostic capabilities with 3D imaging

Built on the OP 3D family technology, the ORTHOPANTOMOGRAPH™ OP 3D™ EX is a complete x-ray platform designed for general practitioners looking to expand their practice with 3D imaging.

The OP 3D EX makes it easy to capture high-quality images with fast scan times while providing user-friendly features throughout the entire dental imaging workflow. Analyze clear, accurate 3D scans and diagnose with confidence thanks to the flexible field of view sizes and advanced filters, both in the device as well as within DTX Studio™ Clinic. Examples of some filters include Metal Artifact Reduction (MAR) and Implant Contrast Enhancement (ICE), and Edge-Preserving Noise Reduction (EPNR).

See what your peers are saying about OP 3D EX

Dr Tolbert, user of OP 3D EX

“I needed a unit with a large sensor, predictable acquisition, good image quality, and intuitive software that wouldn’t slow me down. Once the OP 3D EX got here and we started taking some scans, I thought, ‘Ok, wait… we made a REALLY good choice here.’”

Dr. Tyler Tolbert
Smile Now Dental Group, USA

Dr Varney, user of OP 3D EX

“I feel like I have an ace in the hole. I don’t have to send out to a referral to get clarity because I have extended my diagnostic capabilities and have real diagnostic confidence. If I take a scan I’ll know, more than likely, what’s going on in your mouth.”

Dr. Nicholas Varney
Varney Dental, USA

Dr Michal Kowalski

“Many of our patients are aware of dentistry trends and they associate modern equipment onsite with a high level of dentistry. Therefore, when we looked into expanding our treatment offering, we knew we have to upgrade from 2D to 3D imaging. We decided for OP 3D EX and I can confidently say that it was the right choice. We get quickly high-quality 3D images, greater insights about the patients which give us diagnostic confidence and results in reliable results.”

Dr. Michal Kowalski
Poland

Tailor your images to your diagnostic needs

Animation of the different Field Of View (FOV) of DEXIS OP 3D LX

Help your staff capture what you truly need to see in your diagnostic images with a wide range of customizable field of view (FOV) options ranging from 5 x 5 cm to 10 x 15 cm* and adjustable volume height with low dose, standard, endo and high resolutions.

With 6 preset FOVs and 66 customizable volume sizes, you can achieve optimal diagnostic output at the lowest reasonable dose.



FOV Size (HXD)Clinical application
5 x 5 cmLocalized diagnostics
Endodontic evaluation, single implant sites, and pathoses.
6 x 9 cmSingle arch
Implant planning, surgical guide creation, and impacted canines
8 x 8 cmCompact dual arch
Mandibular and maxillary treatment planning of dental implants in both arches
10 x 10 cmComplete dentition
Mandible and maxilla with 3rd molar region, and lower maxillary sinuses — ideal for multiple implants or periodontal evaluation
10 x 11 cmEnhanced third molar assessment
Ideal for abnormal or impacted third molars and larger jaws. Expanded diameter for horizontally impacted or distally presenting third molars
10 x 15 cm*Dentition and bilateral TMJ
Maxillofacial complex / mandible and maxilla, bilateral TMJ, sinus and pharyngeal airway

*10x15 cm optional field of view size.
All field of view (FOV) displayed are height x diameter (in centimeters).

Capture consistent, high-clarity images

Advanced image algorithms

Gain greater insights into root anatomy, proximity to critical structures, implant visualization and osseointegration. Diagnostic efficacy can lead to predictable outcomes.

Slide the cursor from left to right to see the difference.

Capture fast, accurate images in 4 easy steps

1. Secure patient positioning and stabilization

A newly designed head support helps you quickly find the ideal patient position and helps your patient remain still during exposure.

2. User-friendly interface

Visually choose your area of interest from a user-friendly, straightforward interface.

3. Accurate image capture

Use the optional scout to preview and modify the area of interest without having to reposition the patient or even open the viewing software.

4. Fast scan times

The OP 3D EX has, on average, 30% faster overall scan times and 50% faster low dose scan times.*



*Compared to OP 3D. Data on file.


Confidently create a diagnosis and plan your treatment using AI

Introducing your imaging homebase:
DTX Studio Clinic

Packed with smart tools and advanced algorithms, DTX Studio™ Clinic is your image library, your diagnostic hub and your treatment planning navigator, effortlessly connecting each step of your digital workflow.

Once you’ve captured your 3D images, the software will automatically prep your scans, including:

  • Automated case setup
  • Focal trough identification
  • Auto 3D tooth positioning
  • Mandibular nerve canal annotation
  • Patient positioning correction
  • Merging of CBCT and intraoral scans

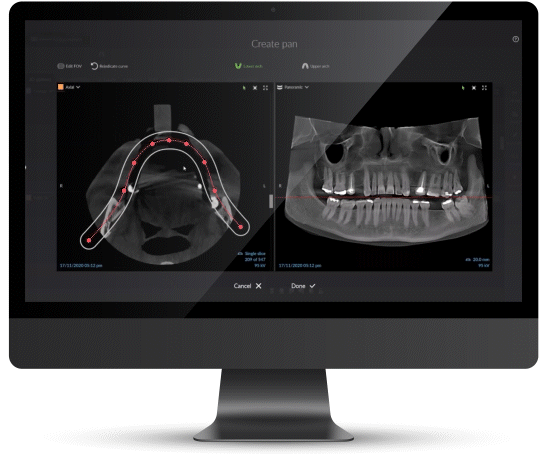

DTX Studio Clinic: Confidently create a diagnosis and plan your treatment using AI

Chairside-designed surgical templates in less than 3 minutes*

Dr Varney, user of OP 3D EX



“The major reason we were able to implement the OP 3D EX and start taking scans so quickly was largely due to DTX Studio Clinic. Once we got going, we found that so much of the work involved in prepping a 3D scan was done by the software, automatically. One of the biggest learning curves for most of us is tracing the mandibular nerve canal, but we just take the 3D scan and the AI locates and traces it for us. The same goes for lining up digital impressions with the CBCT – the software fuses those two files without having to click on points from either dataset. It’s surprising how much smoother things go with the added help. It has improved how we work in all aspects – communicating with patients, implant planning and even treatment team collaboration.”

Dr. Nicholas Varney
Varney Dental, USA

Dr Carlo Massimo Saratti



“The new OP 3D™ EX has significantly improved my workflow. The image quality is excellent, the DTX Studio™ Clinic software is easy to use and the image elaboration very precise, allowing me to make quick and accurate diagnoses. With this device, I can work more efficiently and with greater confidence.”

Dr. Carlo Massimo Saratti
Switzerland

Expand your treatment offering

Implant Placement

The OP 3D EX and DTX Studio Clinic enable you to expand your clinical applications, by allowing for multiple views of your patient scans, presurgical assessments of anatomy, and supporting the placement of accurate and precise implants.

OP 3D EX - Implant Placement

Root Canals

With its dedicated endo resolution (80µm) and precise scan positioning that can easily be centered on an individual tooth, the OP 3D EX has been optimized to help visualize the small details, which can be critical to endodontic diagnostics and planning.

OP 3D EX - Root canals

Gum disease

From implant placement to surgical options for the management of bone loss, the OP 3D EX flexible field of view options allow you to perform a thorough analysis of bone structure as well as sinus and nerve location.

OP 3D EX - Gum disease

Restorative

Capture high-resolution 3D scans to support diagnostic clarity for treatment planning, surgical, and prosthodontic applications of implant dentistry. The OP 3D EX along with DTX Studio Clinic support the ultimate visualization by allowing practitioners to merge 3D data with intraoral surface scans for a complete visualization of the patient anatomy.

OP 3D EX - Restorative

Airway analysis

With its optional 10 x 15 cm large field of view scan, the OP 3D EX along with DTX Studio Clinic can support the evaluation of the airway in one quick scan. This can help you to detect possible airway issues that can be relieved through treatments like mandibular advancement devices, orthodontic expansion or orthognathic surgery.

OP 3D EX - Airway analytsis

TMJ analysis

Ensure proper joint positioning prior to orthodontic planning and evaluate condylar and occlusal changes. The OP 3D EX bilateral visualization of the temporomandibular joint allows you to assess the position within the fossa, degenerative changes to the hard tissue, and to assess the vertical dimension on larger prosthetic cases.

OP 3D EX TMJ

Keep your equipment running smoothly

DEXIS Connect Pro* proactively monitors your
OP 3D EX and schedules support or equipment part replacements if performance issues are ever detected (available with select DEXIS Complete Plans).

Automatic software updates, unlimited telephone support and remote online technical assistance are available to you should you ever need a helping hand.*

10 Years Warranty

Benefit from an optional
10-year warranty coverage for your DEXIS CBCT device.**



*DEXIS Connect Pro not available in all regions. Depending on region, certain features may only be available through paid SLA plan.
**Terms and Conditions apply

OP 3D EX View from the bottom
