The next generation of DEXIS cone beam technology
Built on OP 3D technology, this multimodality imaging platform expands your 3D diagnostic capabilities with a wide range of clinical applications that support your evolving practice and enhance diagnostic confidence.
Built to increase practice efficiency
The 2D and 3D imaging options built into the ORTHOPANTOMOGRAPH™ OP 3D™ LX unit cover a full spectrum of dental extraoral needs, from endodontics to complex surgical cases. This next generation system offers flexible field of view (FOV) options ranging from 5 (H) x 5 (D) cm up to 15 (H) x 20 (D) cm – which is the largest view option available on a DEXIS OP 3D platform to date. With shorter scan times, the OP 3D LX captures the maxillofacial complex and large diagnostic areas in one non-stitched scan for fast workflows.
One versatile imaging platform
Flexible volume sizes
With the largest sensor on a DEXIS OP 3D platform, OP 3D LX offers flexible FOV options ranging from 5x5 quadrant scans up to 15x20 complete maxillofacial complex high-resolution scans.
A scalable solution
Easily upgrade your system with 15x20 field of view as well as add cephalometric modality to meet your evolving diagnostic needs.
High-quality images
Expand your diagnostic confidence and capabilities with the artifact and noise reduction filters embedded into the system software that give you the consistent clear high-quality images.
“There are many treatment plans, but only one diagnosis. What made an impactful impression on me is that when the OP 3D LX large FOV is indicated, the level of detail I see, I only had expected to see that level of detail on smaller FOV scans.“
-Dr. Katya Archambault
Explore the expanded view options
FOV SIZE(HXD) |
CLINICAL APPLICATION |
|
5x5 |
Localized Diagnostics |
|
6x9 |
Single Arch |
|
8x8 |
Compact Dual Arch |
|
10x10 |
Complete Dentition |
|
12x15 |
Entire Dentition |
|
15x20* |
Maxillofacial Complex |
FOV options can be adjusted to offer 96 unique sizes.
Sizes may not be available in all regions.
*optional field of view
Intuitive, interactive and smart features
User interface
OP 3D LX offers an intuitive user interface that enables you to easily position the patient, visually choose the areas of interest with your 3D, panoramic or cephalometric settings and preview the X-ray image shortly after exposure without opening any image viewing software.
Intuitive accuracy
The intuitive user interface in the OP 3D LX system makes it easy to select your field of view and allows for accurate anatomy visualization, vertical adjustments, and bi-directional scout modifications to capture only structures of interest.
Re-engineered head support
The new head support design provides options to scan the patient without interfering with the patient’s soft tissue profile optimized for orthodontic and surgical applications.
Stitch-free scans
You can accurately diagnose, plan, and treat your patients with confidence using single pass capture with no stitching on every scan size.
Enhanced visibility
Enjoy the next generation of automated ICE* (Implant Contrast Enhancer) and MAR (Metal Artifact Reduction) to provide greater visibility of internal metal structures of existing implants, while minimizing the impact of metal and restorations.
Exposure Switch
The new exposure switch comes with an improved, ergonomic design and a light indicator that shows the device status (ready or exposing) making it more user-friendly and efficient. Discover the power of personalization with the ability to adjust sounds for both the device and remote control.
Invest with confidence
We stand behind our products to help you feel confident with your investment. We offer a 60-day satisfaction guaranteed program as well as many self-paced educational opportunities included with your investment. Connect with your local DEXIS representative today to learn more.
With the purchase of any new CBCT equipment, DEXIS and BeamReaders are teaming up to offer 30 radiology reports in your first 90 days of ownership. Whether you are new to CBCT or an imaging veteran, enhance your radiological and diagnostic capabilities as you incorporate your new CBCT into your practice.
Keep your equipment operating smoothly
DEXIS Connect Pro* proactively monitors your OP 3D LX and schedules support or equipment part replacements if performance issues are ever detected (available with select DEXIS Complete Plans).
Automatic software updates, unlimited telephone support and remote online technical assistance are available to you should you ever need a helping hand.*
Benefit from an optional
10-year warranty coverage for your DEXIS CBCT device.**
*DEXIS Connect Pro not available in all regions. Depending on region, certain features may only be available through paid SLA plan.
**Terms and Conditions apply. Not available in all regions.

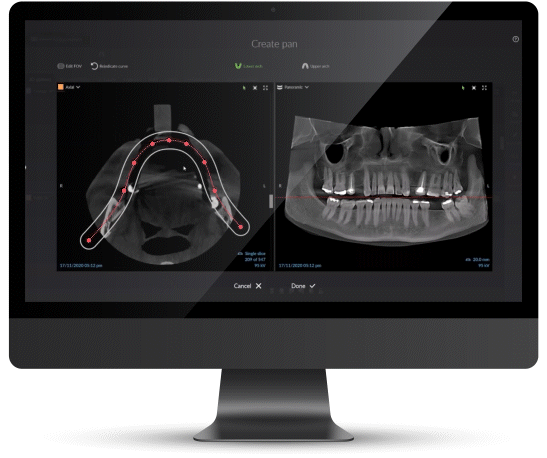

Assisted intelligence for workflow efficiencies
Our intuitive award-winning software features, in DTX Studio™ Clinic, support a more efficient workflow allowing you to spend less time in the software and more time with your patient. Some of the many assisted intelligent features include:
- Automatic focal trough detection
- Patient positioning correction
- Mandibular nerve canal annotation
Automatic Dose Control (ADC)
Automatically measures your patients’ anatomy and sets exposure values for optimal image quality and dose.
Early adopters have reported positive feedback:
“The new Automatic Dose Control is one of the few things in life I don’t have to question. It offers both better and more consistent image quality. I could never argue with the results.”
—Dr. Katya Archambault, San Diego Health Center.
Discover the possibilities with 3D imaging
Endodontics
With its dedicated endo resolution and precise scan positioning that can easily be centered on an individual tooth, the OP 3D LX has been optimized to help visualize the smallest details which can be critical to endodontic diagnosis and planning.
Maxillofacial Surgery
With clear and accurate data during a pre-operative evaluation, maxillofacial surgeons can assess and plan third molar extractions, determine bone dimension and quality, assess anatomical structures like the maxillary sinus, and plan surgical exposures.
Orthodontics
Elevate your clinical confidence with high-resolution CBCT imaging for orthodontic treatment evaluation. Offering a powerful solution for positioning impacted maxillary canines and supernumeraries, diagnosing root resorption, unerupted teeth, severe skeletal discrepancies, and other difficult cases.
TMJ Analysis
Ensure proper joint positioning prior to orthodontic planning and evaluate condylar and occlusal changes. The OP 3D LX bilateral visualization of the temporomandibular joint to assess the position within the fossa, degenerative changes to the hard tissue, and to assess the vertical dimension on larger prosthetic cases.
Airway Analysis
Ensure proper joint positioning prior to orthodontic planning and evaluate condylar and occlusal changes. The OP 3D LX bilateral visualization of the temporomandibular joint to assess the position within the fossa, degenerative changes to the hard tissue, and to assess the vertical dimension on larger prosthetic cases.
Periodontics
From implant placement to surgical options for the management of bone loss, the OP 3D LX flexible field of view options allow you to perform a thorough analysis of bone structure as well as sinus and nerve location.
Prosthodontics
Capture high resolution 3D scans to support diagnostic clarity for treatment planning, surgical, and prosthodontic applications of implant dentistry. Our workflows support ultimate visualization by allowing practitioners to merge 3D data with intraoral surface scans for a complete visualization of the patient anatomy.
Implant Placement
Whether you’re planning single unit implants, All-on-4®, or zygomatic implants, the OP 3D LX allows you to expand your clinical applications, allowing for multidimensional imaging, presurgical assessments of anatomy; and supporting more accurate and precise implant placements.

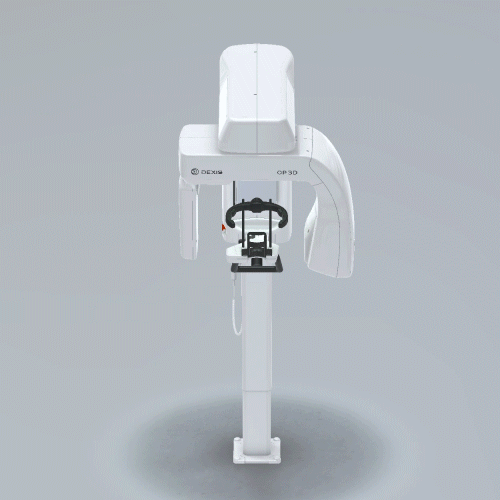

Step into our virtual showroom and experience the innovation in 3D
Explore every angle, zoom in on the details, and interact with the product in a fully immersive 3D environment — all from your screen. Ready to take a closer look?
